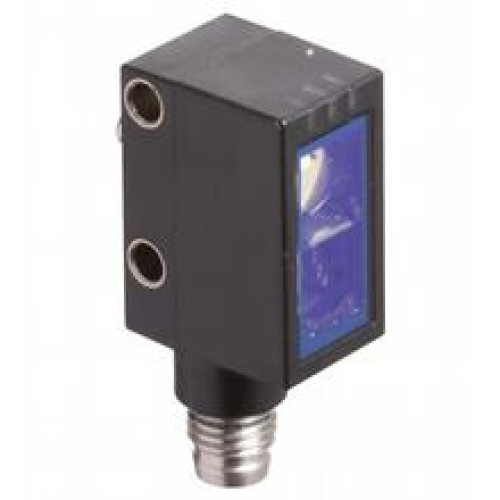

OBT60-R102-2P1-IO-V31

Triangulation sensor - Detection range: 10 ... 60 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100555     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 10 ... 60 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability Back Order

£140.81
  • Detection range: 10 to 60 mm
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = BK)
  • Switching type:
    • C/Q - Pin4: NPN normally closed/dark-on, PNP normally open/light-on
    • IO-Link/Q - Pin2: NPN normally open/light-on, PNP normally closed/dark-on
  • Connection: M8 x 1 connector, 4-pin
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
267075-100555
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£140.81
Sign in or Register for customer prices.
