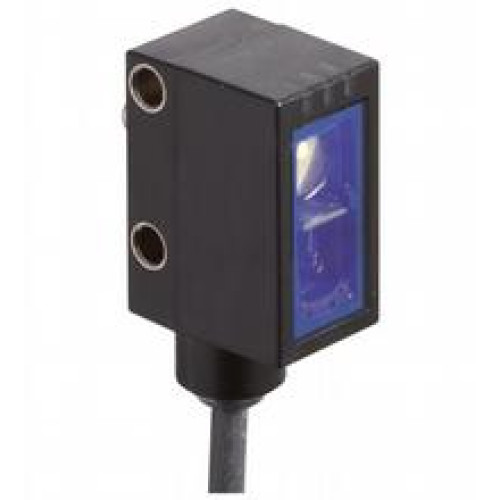

OBT20-R102-2P1-IO-F

Triangulation sensor - Detection range: 7 ... 20 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1

Manufacturer's No: 267075-100601     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 7 ... 20 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarit..

Availability On Request

£154.59
  • Detection range: 7-20 mm
  • Light source: LED, modulated visible red light
  • Signal output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = BK)
  • Switching type:
    • C/Q - BK: NPN normally closed/dark-on, PNP normally open/light-on
    • IO-Link/Q - WH: NPN normally open/light-on, PNP normally closed/dark-on
  • Connection: 2 m fixed cable
  • Operating voltage: 10-30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
267075-100601
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£154.59
