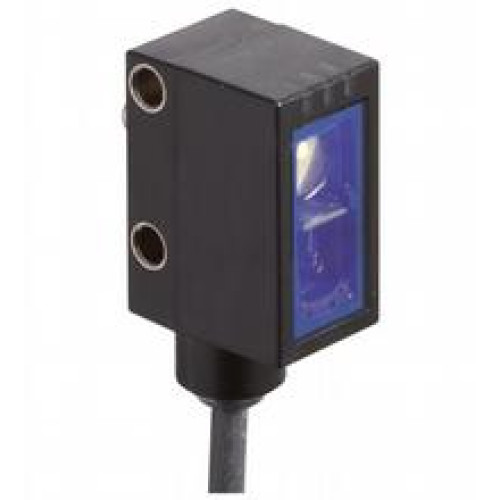

OBT43-R102-2P1-IO

Triangulation sensor - Detection range: 10 ... 40 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2

Manufacturer's No: 267075-100614     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 10 ... 40 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polar..

Availability On Request

£174.06
  • Detection Range: 10-40 mm
  • Light Source: LED, modulated visible red light
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link
  • Switching Type: C/Q - Pin4: NPN normally closed/dark-on, PNP normally open/light-on, IO-Link/Q - Pin2: NPN normally open/light-on, PNP normally closed/dark-on
  • Connection: 2 m fixed cable
  • Operating Voltage: 10-30 V (18-30 V for IO-Link)
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F) fixed cable, -25 to 60 °C (-13 to 140 °F) movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
267075-100614
Net Weight -

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£174.06
