279-512

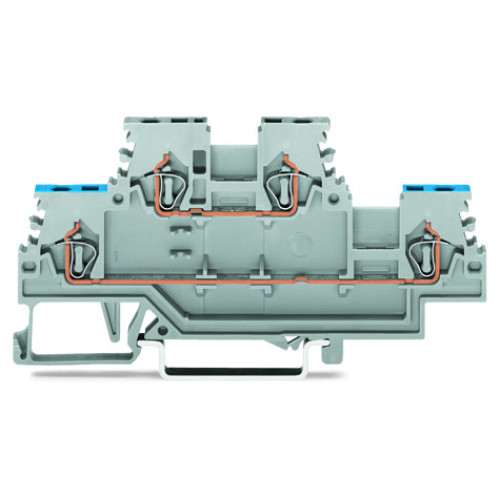

Double-deck terminal block; Through/through terminal block; N/L; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm; CAGE CLAMP

Manufacturer's No: 279-512     Manufacturer: WAGO
Double-deck terminal block; Through/through terminal block; N/L; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm; CAGE CLAMP

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£1.98
  • Double-deck terminal block
  • Through/through terminal block
  • Suitable for DIN-rail 35 x 15 and 35 x 7.5
  • 1.5 mm wire capacity
  • Features CAGE CLAMP technology


Product

Manufacturer Material ID -
279-512
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
85 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
4 Millimetre
Height at lowest possible mounting height -
39 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
Colour -
Grey
Rated voltage -
500 Volt
Operating temperature -
105 Degrees celsius
Inflammability class of insulation material acc. with UL94 -
V0
Closing plate required -
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Number of levels -
2
Number of clamp positions per level -
2
Connectable conductor cross section solid-core -
0.08 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Material insulation body -
Thermoplastic
Rated current In -
18 Ampere

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.00

£1.98
