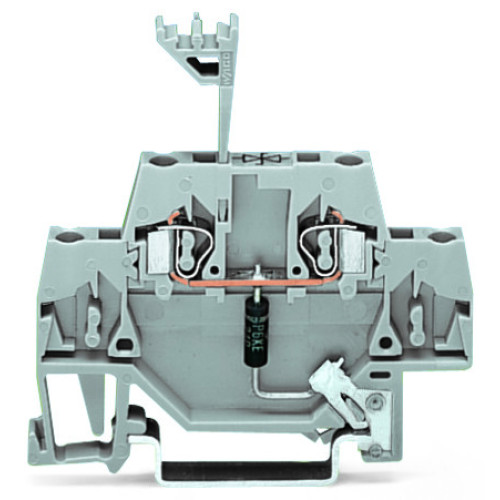

280-502/281-602

Terminal Block With Suppressor Diode, With Direct Connection To Din Rail 24 Vdc Gray

Manufacturer's No: 280-502/281-602     Manufacturer: WAGO
Terminal Block With Suppressor Diode, With Direct Connection To Din Rail 24 Vdc Gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£13.59
  • Component terminal block for DIN rail mounting
  • Double-deck design with direct connection to DIN rail
  • Equipped with P6KE36C TVS diode for overvoltage protection
  • Rated for 24 VDC
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Features CAGE CLAMP® technology for secure wire connections
  • Terminal block supports wire sizes up to 2.5 mm²
  • Color: Gray

Accessories

Comb-Style Jumper Bar, Insulated 5-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-485
Price £1.10
Back Order

End And Intermediate Plate, 2.5 mm Thick Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-341
Price £0.49
Back Order

Insulation Stop, 0.08 - 0.2 mm S (0.14 mm F-St) 5 Pieces/Strip White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-470
Price £0.11
Back Order

Insulation Stop, 0.25 - 0.5 mm 5 Pieces/Strip Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-471
Price £0.11
Back Order

Insulation Stop D-Grey 0,75-1Sqmm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-472
Price £0.11
Back Order

Comb-Style Jumper Bar, Insulated 2-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-482
Price £0.50
Back Order

Comb-Style Jumper Bar, Insulated 10-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-490
Price £1.53
Back Order

Alternate Comb-Style Jumper Bar, Insulated 2-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-492
Price £0.96
Back Order

Comb-Style Jumper Bar, Insulated 4-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-484
Price £1.00
Back Order

Comb-Style Jumper Bar, Insulated 3-Way Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 280-483
Price £0.91
Back Order


Product

Manufacturer Material ID -
280-502/281-602
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
50
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
64 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
58.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
64 Millimetre
Height -
58.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
24 Volt
Type of component -
Suppressor diode
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
5 Millimetre
