280-504/281-586

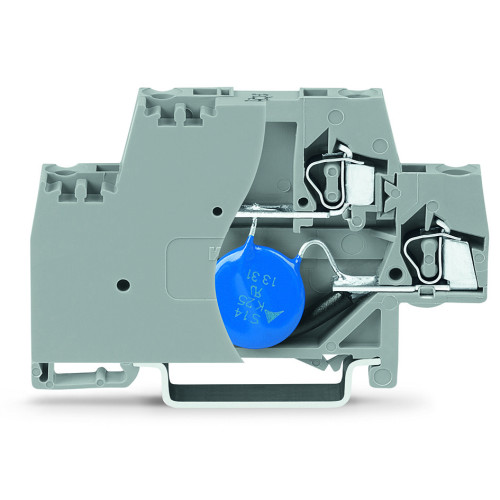

Component terminal block, double-deck, with end plate, gray

Manufacturer's No: 280-504/281-586     Manufacturer: WAGO
Component terminal block, double-deck, with end plate, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Component: Terminal block
  • Design: Double-deck with end plate
  • Features: Varistor included
  • Compatibility: DIN-rail 35 x 15 and 35 x 7.5
  • Wire Size: 2.5 mm²
  • Connection Type: CAGE CLAMP®
  • Color: Gray

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
On Request

End and intermediate plate, 2.5 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-341
Price £0.49
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-471
Price £0.11
On Request

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-472
Price £0.11
On Request

Jumper, 2-way, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-492
Price £0.96
On Request


Product

Manufacturer Material ID -
280-504/281-586
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Length -
64 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
10 Millimetre
Height at lowest possible mounting height -
39.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
64 Millimetre
Height -
39.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
20 Ampere
Rated voltage -
24 Volt
Type of component -
Varistor (voltage-sensitive resistor)
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
10 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
