288-815

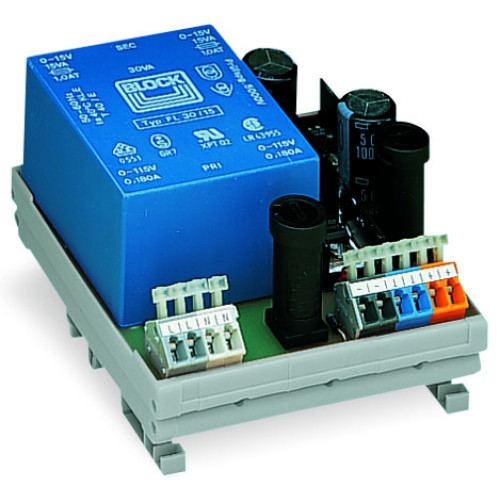

stabilized power supply, Input voltage: 230 VAC, ±15 VDC output voltage

Manufacturer's No: 288-815     Manufacturer: WAGO
stabilized power supply, Input voltage: 230 VAC, ±15 VDC output voltage

Availability On Request

£187.93
  • Stabilized power supply
  • Input voltage: 230 VAC
  • Output voltage: ±15 VDC
  • Output current: 2 x 0.5 A
  • Mounting carrier included
  • Wire size: 2.50 mm²

Accessories



Product

Manufacturer Material ID -
288-815
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
32121704

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
Power output -
- Watt
Degree of protection (IP) -
UN
3rd secondary output voltage -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 3 -
- Ampere
Nominal value output voltage 3 -
- Volt
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
1st secondary output voltage -
15 Volt
2nd secondary output voltage -
-15 Volt
Depth -
106 Millimetre
Height -
106 Millimetre
Max. output current 1 -
0.5 Ampere
Max. output current 2 -
0.5 Ampere
Nominal value output current 1 -
0.5 Ampere
Nominal value output current 2 -
0.5 Ampere
Nominal value output voltage 1 -
15 Volt
Nominal value output voltage 2 -
-15 Volt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
230 Volt
Rated supply voltage at DC -
15 Volt
Secondary voltage adjustable -
Stabilized -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
AC
Width -
94 Millimetre
Width in number of modular spacings -
6

Availability On Request

£187.93
