294-4043

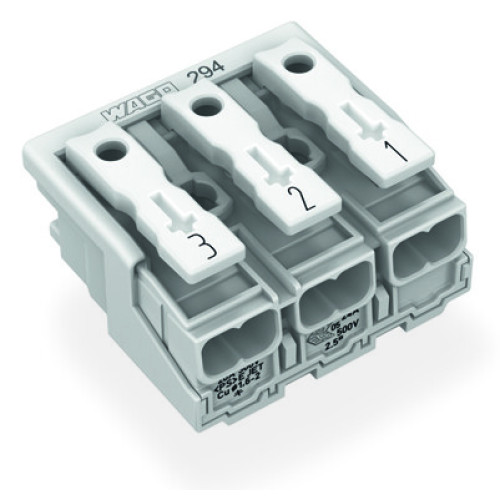

Power supply connector; without ground contact; without snap-in mounting feet; 3-2-1; 3-pole

Manufacturer's No: 294-4043     Manufacturer: WAGO
Power supply connector; without ground contact; without snap-in mounting feet; 3-2-1; 3-pole

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.78
  • Lighting connector with push-button, external design
  • 3-pole connector without ground contact
  • Lighting side designed for solid conductors
  • Installation side compatible with all conductor types
  • Maximum conductor size of 2.5 mm²
  • Maximum surrounding air temperature of 85°C (T85)
  • Connector size: 2.50 mm²
  • Color: white

Accessories

Strain Relief Plate, With Secured Clamp 3- To 5-Pole

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 294-364
Price £0.38
Back Order


Product

Manufacturer Material ID -
294-4043
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
27.3 Millimetre
Operation temperature -
125 Degrees celsius
Width/grid dimension -
30 Millimetre
Height at lowest possible mounting height -
17 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
17 Millimetre
Halogen free -
Height -
27.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
3
Operating temperature -
125 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
30 Millimetre
