294-5053

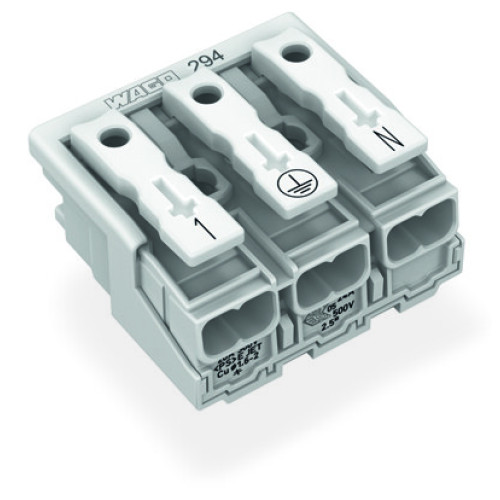

Lighting connector, push-button, external, without ground contact, white

Manufacturer's No: 294-5053     Manufacturer: WAGO
Lighting connector, push-button, external, without ground contact, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.84
  • Lighting connector with push-button design
  • External connector without ground contact
  • 3-pole connector with solid conductor compatibility on the lighting side
  • Compatible with all conductor types on the installation side
  • Maximum conductor size of 2.5 mm²
  • Maximum surrounding air temperature of 85°C (T85)
  • White color connector

Accessories

Strain relief plate, for 294 Series, for multicore cables, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-364
Price £0.38
On Request

Strain relief, for 294 Series, with snap-in mounting feet, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-370
Price POA
On Request

Strain relief, for 294 Series, without snap-in mounting feet, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-375
Price POA
On Request

Strain relief plate, for 294 Series, for single strands, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-384
Price POA
On Request


Product

Manufacturer Material ID -
294-5053
Net Weight -
4.68kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
27.3 Millimetre
Operation temperature -
125 Degrees celsius
Width/grid dimension -
30 Millimetre
Height at lowest possible mounting height -
21.53 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
21.53 Millimetre
Halogen free -
Height -
27.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
3
Operating temperature -
125 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
30 Millimetre
