294-5095/5027-000

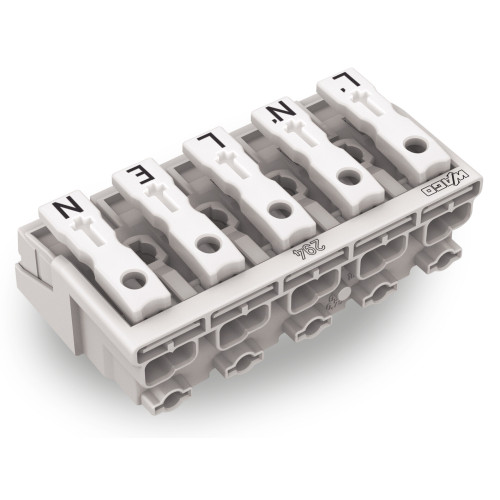

Lighting connector, push-button, external, without ground contact, white

Manufacturer's No: 294-5095/5027-000     Manufacturer: WAGO
Lighting connector, push-button, external, without ground contact, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.76
  • Lighting connector with push-button, external design
  • 5-pole connector without ground contact
  • Lighting side designed for solid conductors
  • Installation side compatible with all conductor types
  • Maximum conductor size of 2.5 mm²
  • Suitable for surrounding air temperatures up to 85°C
  • Connector size: 2.50 mm²
  • Color: white

Accessories

Strain relief plate, for 294 Series, for multicore cables, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-364
Price £0.38
On Request

Strain relief, for 294 Series, with snap-in mounting feet, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-370
Price POA
On Request

Strain relief, for 294 Series, without snap-in mounting feet, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-375
Price POA
On Request

Strain relief plate, for 294 Series, for single strands, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 294-384
Price POA
On Request


Product

Manufacturer Material ID -
294-5095/5027-000
Net Weight -
3.81kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
27.3 Millimetre
Operation temperature -
120 Degrees celsius
Width/grid dimension -
50 Millimetre
Height at lowest possible mounting height -
17 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
17 Millimetre
Halogen free -
Height -
27.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
5
Operating temperature -
120 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
50 Millimetre
