294-8032

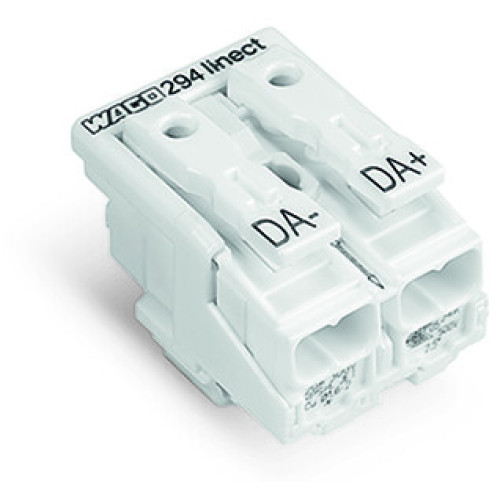

Lighting connector, push-button, external, for Linect®, white

Manufacturer's No: 294-8032     Manufacturer: WAGO
Lighting connector, push-button, external, for Linect®, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.84
  • Lighting connector for Linect® without ground contact
  • Push-button external connector with 2-pole Cod. I design
  • Lighting side suitable for solid conductors
  • Inst. side compatible with all conductor types up to 2.5 mm²
  • Maximum surrounding air temperature of 85°C (T85)
  • Connector designed for 1.50 mm² wires
  • White color


Product

Manufacturer Material ID -
294-8032
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
27.3 Millimetre
Operation temperature -
125 Degrees celsius
Width/grid dimension -
20 Millimetre
Height at lowest possible mounting height -
22.4 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
27.3 Millimetre
Height -
22.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
2
Operating temperature -
125 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
20 Millimetre

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£0.84
