294-8093/3025-000

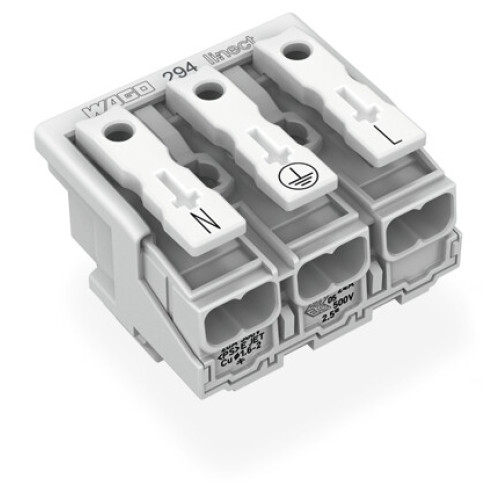

Lighting connector, push-button, external, for Linect®, white

Manufacturer's No: 294-8093/3025-000     Manufacturer: WAGO
Lighting connector, push-button, external, for Linect®, white

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • Lighting connector for Linect® without ground contact
  • Push-button external design
  • 3-pole Cod. A configuration
  • Lighting side for solid conductors
  • Inst. side for all conductor types up to 2.5 mm²
  • Maximum surrounding air temperature: 85°C (T85)
  • White color, 2.50 mm² dimensions


Product

Manufacturer Material ID -
294-8093/3025-000
Net Weight -
4.89kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CH
UNSPSC -
39121410

Technical Specification

Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
27.3 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
3
Operating temperature -
125 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
