294-8235

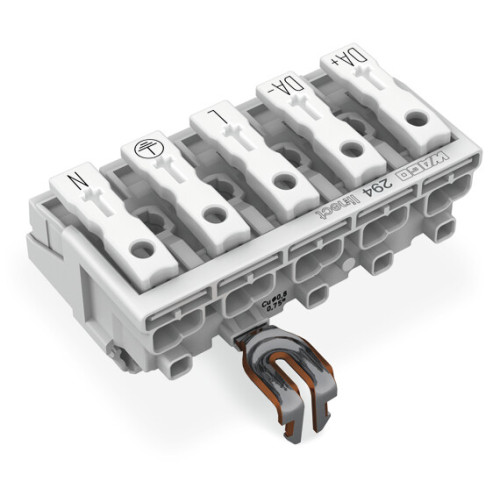

Power supply connector 17mm version with snap-in ground contact white

Manufacturer's No: 294-8235     Manufacturer: WAGO
Power supply connector 17mm version with snap-in ground contact white

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.21
  • Lighting connector for Linect® with push-button and snap-in ground contact
  • 5-pole connector with DA+, DA-, L, PE, N pins
  • Designed for solid conductors on the lighting side and all conductor types on the installation side
  • Maximum conductor size of 2.5 mm²
  • Operating temperature up to 85°C
  • Color: white


Product

Manufacturer Material ID -
294-8235
Net Weight -
4.35kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
PL
UNSPSC -
39121410

Technical Specification

Drill hole distance centrically -
- Millimetre
Length -
27.3 Millimetre
Operation temperature -
125 Degrees celsius
Width/grid dimension -
50 Millimetre
Height at lowest possible mounting height -
22.4 Millimetre
Connection position -
Sideways
Colour -
White
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Connectable conductor cross section solid-core -
0.5 Square millimetre
Depth -
27.3 Millimetre
Height -
22.4 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Other
Mounting method -
Other
Number of clamp positions per pole -
2
Number of poles -
5
Operating temperature -
125 Degrees celsius
Rated current In -
24 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug clamp connection
Width -
50 Millimetre

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£1.21
