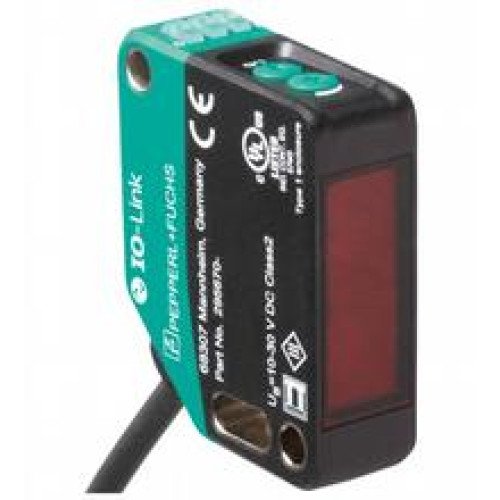

OBR25M-R200-2EP-IO-L

Laser retroreflective sensor - Effective detection range: 0 ... 25 m, Light source: laser diode, Light type: modulated visible red

Manufacturer's No: 295670-100034     Manufacturer: Pepperl+Fuchs
Laser retroreflective sensor - Effective detection range: 0 ... 25 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit ..

Availability On Request

£151.61
  • Detection range: 0 to 25 m
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = BK)
  • Switching type: Adjustable with default settings as NPN normally open/dark-on for C/Q - BK and PNP normally closed/light-on for IO-Link/Q - WH
  • Connection: 2 m fixed cable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -20 to 60 °C (-4 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
295670-100034
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£151.61
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
