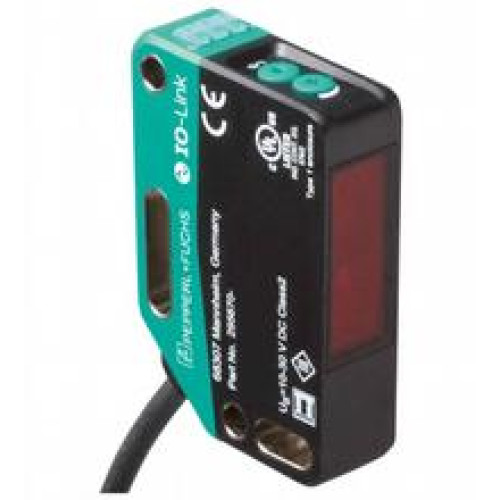

OBR15M-R201-2EP-IO

Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal

Manufacturer's No: 295670-100064     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 15 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, rev..

Availability On Request

£106.70
  • Detection range: 0 to 15 m
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = BK)
  • Switching type: Adjustable, default setting: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on
  • Connection: 2 m fixed cable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -20 to 60 °C (-4 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
295670-100064
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£106.70
