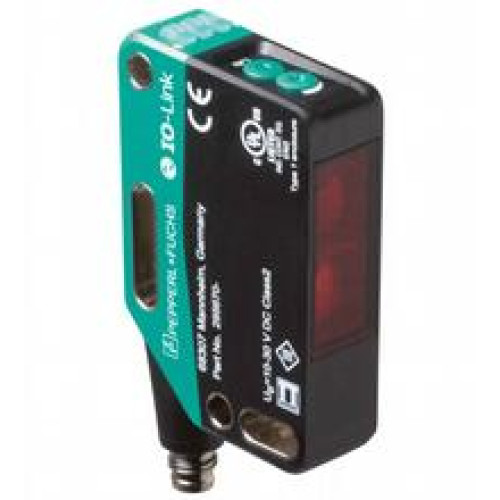

OBR25M-R201-2EP-IO-V31-L

Laser retroreflective sensor - Effective detection range: 0 ... 25 m, Light source: laser diode, Light type: modulated visible red

Manufacturer's No: 295670-100085     Manufacturer: Pepperl+Fuchs
Laser retroreflective sensor - Effective detection range: 0 ... 25 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit ..

Availability Back Order

£146.21
  • Detection Range: 0 to 25 m
  • Light Source: Laser diode
  • Light Type: Modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q on pin 4
  • Switching Type: Adjustable with default settings for NPN normally open/dark-on and PNP normally closed/light-on
  • Connection: 4-pin, M8 x 1 connector, 90° rotatable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
295670-100085
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability Back Order

£146.21
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
