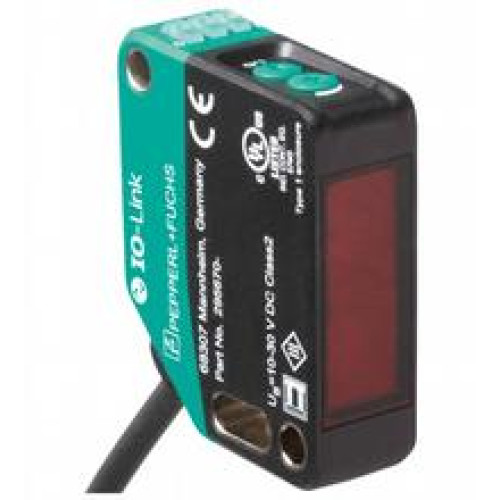

OBT650-R200-2EP-IO

Triangulation sensor - Detection range: 10 ... 650 mm, Light source: LED, Light type: modulated visible red light, Signal output:

Manufacturer's No: 295670-100111     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 10 ... 650 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse pola..

Availability On Request

£129.18
  • Detection range: 10 to 650 mm
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = BK)
  • Switching type: Adjustable with default settings for NPN normally open / light-on and PNP normally closed / dark-on
  • Connection: 2 m fixed cable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F) fixed cable, -20 to 60 °C (-4 to 140 °F) movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
295670-100111
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£129.18
