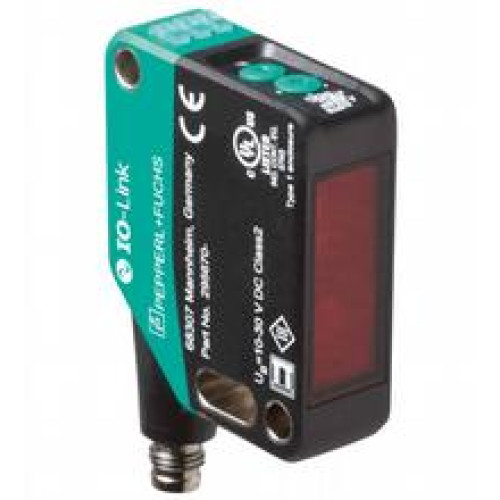

OQT400-R200-2EP-IO-V31

Triangulation sensor - Detection range: 40 ... 400 mm, Light source: LED, Light type: modulated visible red light, Signal output:

Manufacturer's No: 295670-100123     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 40 ... 400 mm, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse pola..

Availability On Request

£151.61
  • Detection Range: 40-400 mm
  • Light Source: LED, modulated visible red light
  • Signal Output: 2 push-pull outputs (4 in 1), short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q (pin 4)
  • Switching Type: Default setting - C/Q Pin4: NPN normally open, PNP normally closed; IO-Link Q2 Pin2: NPN normally open, PNP normally closed
  • Connection: 4-pin, M8 x 1 connector (90° rotatable)
  • Operating Voltage: 10-30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
295670-100123
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£151.61
