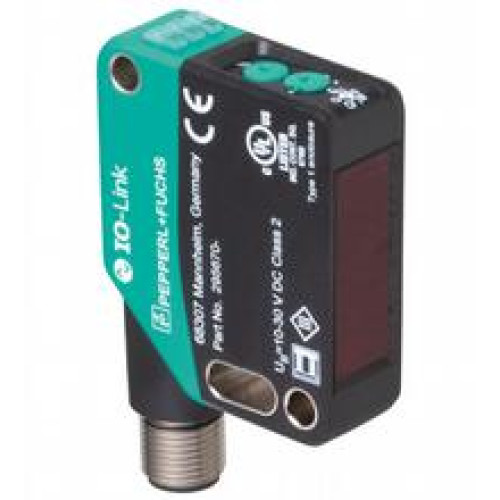

OBG8000-R200-2EP-IO-V15

Retroreflective sensor - Effective detection range: 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N", Light

Manufacturer's No: 295670-100149     Manufacturer: Pepperl+Fuchs
Retroreflective sensor - Effective detection range: 0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N", Light source: LED, Light type: modulated visible red light, Signal output: 2 push-p..

Availability On Request

£140.37
  • Detection Range: 0 to 5.6 m in TEACH mode; 0 to 8 m in switch position "N"
  • Light Source: LED with modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link via C/Q (pin 4)
  • Switching Type: Adjustable with default settings for NPN and PNP
  • Connection: 5-pin, M12 x 1 connector, 90° rotatable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -20 to 60 °C (-4 to 140 °F)


Product

Manufacturer Material ID -
295670-100149
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£140.37
