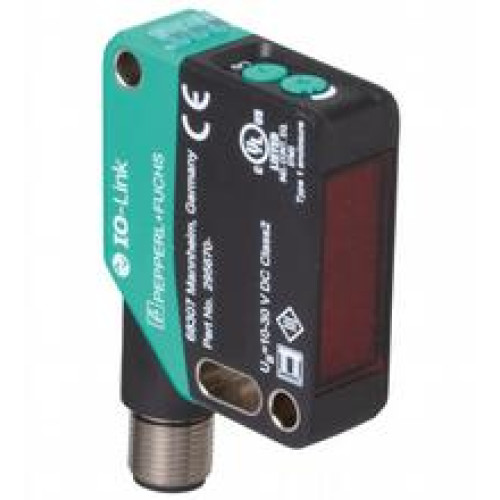

OBT300-R200-E5-IO-V1

Triangulation sensor - Detection range: 30 ... 300 mm, Light source: LED, Light type: modulated visible red light, Signal output:

Manufacturer's No: 295670-100371     Manufacturer: Pepperl+Fuchs
Triangulation sensor - Detection range: 30 ... 300 mm, Light source: LED, Light type: modulated visible red light, Signal output: 1 PNP, short-circuit protected, reverse polarity protected, Interfa..

Availability Back Order

£121.03
  • Detection range: 30 to 300 mm
  • Light source: LED, modulated visible red light
  • Signal output: 1 PNP, short-circuit and reverse polarity protected
  • Interface type: IO-Link via pin 4
  • Switching type: Adjustable, default setting: PNP normally open/light-on
  • Connection: 4-pin, M12 x 1 connector, 90° rotatable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)

Accessories



Product

Manufacturer Material ID -
295670-100371
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
39121501
Pepperl+Fuchs

Availability Back Order

£121.03
