2CSF502110R1250

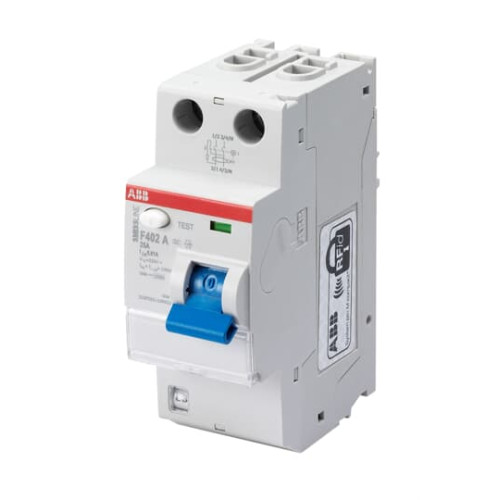

F402 25 A30 Residual Current Circuit Breaker

Manufacturer's No: 2CCF552110E0250     Manufacturer: ABB
F402 25 A30 Residual Current Circuit Breaker

Availability On Request

£140.99
  • F402 25 A30 Residual Current Circuit Breaker
  • Part of the RCCBs F400 series
  • Provides protection to people
  • Features plug-in contacts for fast installation
  • SMISSLINE TP residual current devices can be easily replaced without tools or disconnecting the supply


Product

Manufacturer Material ID -
2CCF552110E0250
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
IT
UNSPSC -
39122330

Technical Specification

Built-in depth -
69 Millimetre
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
Other
Leakage current type -
A
Mounting method -
Other
Number of poles -
2
Pollution degree -
2
Power loss -
3.8 Watt
Rated current -
25 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Short-circuit breaking capacity (Icw) -
1 kiloampere
Surge current capacity -
0.25 kiloampere
Width in number of modular spacings -
2
With interlocking device -
ABB

Availability On Request

£140.99
