2CCS861001R0085

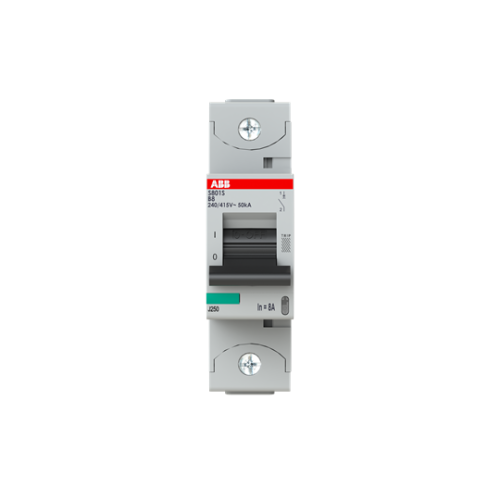

S801S-B8 High Performance MCB

Manufacturer's No: 2CCS861001R0085     Manufacturer: ABB
S801S-B8 High Performance MCB

Availability On Request

£89.09
  • S801S-B8 1-pole High Performance MCB with B-characteristic
  • Rated current: 8 A
  • Maximum breaking capacity: 50kA at 240/415V
  • Voltage range: up to 400/690V, suitable for DC
  • Two tripping mechanisms: thermal for overload, electromechanic for short circuit
  • Complies with IEC/EN 60947-2 for industrial applications
  • Global approvals for worldwide use
  • Fast arc extinction for enhanced application security
  • Cage terminal for easy installation
  • Extensive range of accessories available


Product

Manufacturer Material ID -
2CCS861001R0085
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85362000
Country of Origin -
CH
UNSPSC -
39121601

Technical Specification

Built-in depth -
82.5 Millimetre
Release characteristic -
B
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
0 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
4
Pollution degree -
3
Power loss -
1.7 Watt
Rated current -
8 Ampere
Rated impulse-withstand voltage (Uimp) -
8 Kilovolt
Rated insulation voltage Ui -
690 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
25 kiloampere
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
25 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
50 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
6 kiloampere
Rated voltage -
230 Volt
Recess depth -
82.5 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
Other
Width in number of modular spacings -
1.5
