2CMA100248R1000

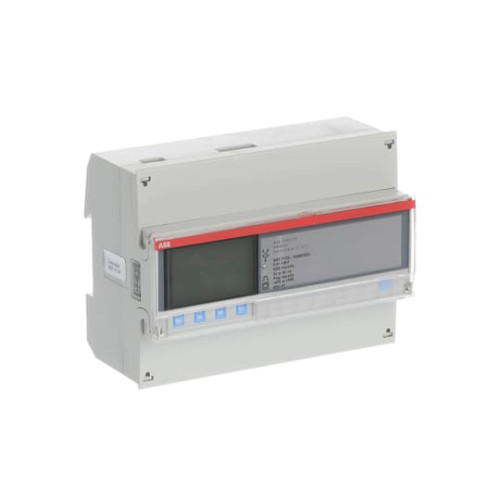

A44 112-100, Energy meter'Steel', Modbus RS485, Three-phase, 1 A

Manufacturer's No: 2CMA100248R1000     Manufacturer: ABB
A44 112-100, Energy meter'Steel', Modbus RS485, Three-phase, 1 A

Availability On Request

£409.07
  • Energy meter for industrial and commercial use
  • Three-phase, 1 A
  • Modbus RS485 communication
  • Large backlit pixel-oriented display
  • Suitable for 3 or 4 wire systems with wide voltage range
  • 25 possible alarms and event logs
  • Accuracy class 1.0 (or B for MID meters)
  • IEC and MID approved
  • RS-485 communication over Modbus RTU or EQ Bus
  • Three-phase transformer connection for active energy

Read more

  • One output for pulses or alarms


Product

Manufacturer Material ID -
2CMA100248R1000
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
90283019
Country of Origin -
SE
UNSPSC -
39122330

Technical Specification

Tariff control -
UN
Degree of protection (NEMA) -
UN
Model -
Measurement transformer
Suitable for -
Purchase
Type of indication -
Digital
Frequency -
50 Hertz
Degree of protection (IP) -
IP20
Type of interface -
Modbus
Energy type -
Effective power
Pulse rate -
1 Pulse constant
Nominal voltage (Un) N-L -
57.7 Volt
Nominal voltage (Un) L-L -
100 Volt
Accuracy class -
B
Approval -
Measuring Instruments Directive
Calibrated -
Degree of protection (IP rating) -
IP20
Depth -
65 Millimetre
Escapement mechanism -
Height -
26.5 Millimetre
Interface type -
Other
Max. current (Imax) -
6 Ampere
Mounting method -
DRA (DIN-rail adapter)
Nominal current (In) -
6 Ampere
Number of positions total (counter) -
7
Pole type -
Four conductor
Power consumption -
0.801 Watt
Pulse output -
Electrical
Pulse type -
S0
Tariff type -
One-tariff
Type of indicator -
Digital
Type of meter -
Electronic
Width -
123 Millimetre
Width in number of modular spacings -
7
ABB

Availability On Request

£409.07
