2CMA142440R1000

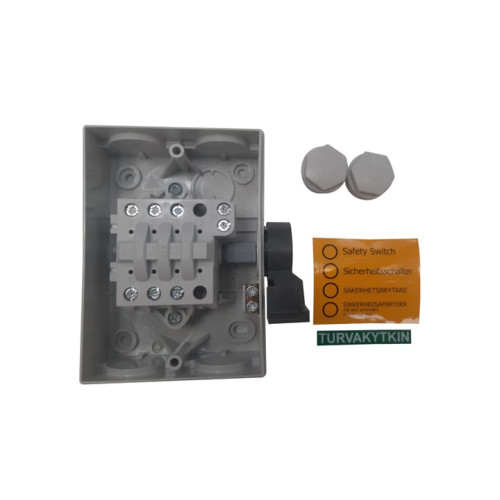

BWS316FTPN Safety switch

Manufacturer's No: 2CMA142440R1000     Manufacturer: ABB
BWS316FTPN Safety switch

Availability On Request

£50.08
  • BWS316FTPN Safety switch
  • 3-pole, 415V AC23, 16A, 7.5kW
  • Plastic enclosure with IP65 protection
  • Side-operated handle with interlocked cover
  • Enclosure made of rigid polycarbonate, UV protected
  • Suitable for outdoor and indoor use
  • Available in grey, yellow, and white
  • Threaded cable entries with knock out holes for 2 parallel cables
  • Membrane grommets included (IP54)
  • Padlockable handle for one padlock

Read more

  • Designed for 5-wire system with fixed neutral and PE terminals
  • Easily accessible terminals for simple installation


Product

Manufacturer Material ID -
2CMA142440R1000
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Conditioned rated short-circuit current Iq -
- kiloampere
Type of electrical connection of main circuit -
UN
Rated short-time withstand current lcw -
- kiloampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Suitable for ground mounting -
Rated permanent current at AC-21, 400 V -
25 Ampere
Colour control element -
Grey
Degree of protection (IP), front side -
IP65
Degree of protection (NEMA) -
Other
Depth -
60 Millimetre
Device construction -
Complete device in housing
Height -
130 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operating voltage -
690 Volt
Rated operation power at AC-23, 400 V -
7.5 Kilowatt
Rated permanent current at AC-23, 400 V -
16 Ampere
Rated permanent current Iu -
32 Ampere
Suitable for distribution board installation -
Switching power at 400 V -
7.5 Kilowatt
Type of control element -
Rocker lever
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
Width -
111 Millimetre
ABB

Availability On Request

£50.08
