2CPX010026R9999

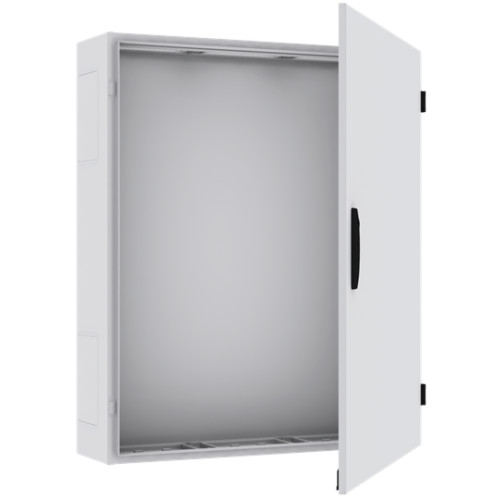

TG209G Wall-mounting cabinet, Rows: 9, 1400 mm x 550 mm x 225 mm, Grounded (Class I), IP55

Manufacturer's No: 2CPX010026R9999     Manufacturer: ABB
TG209G Wall-mounting cabinet, Rows: 9, 1400 mm x 550 mm x 225 mm, Grounded (Class I), IP55

Availability On Request

£591.94
  • Wall-mounting cabinet, Rows: 9
  • Dimensions: 1400 mm x 550 mm x 225 mm
  • Grounded (Class I), IP55 protection
  • Series TwinLine, empty cabinet
  • Expansion options: Lateral and bottom
  • Internal use, single-leaf door
  • Impact strength IK08, Powder-coated in RAL 7035
  • Enclosure made of sheet steel
  • Standard locking mechanism double bit
  • Door opening angle 180 degrees, hinge right or left

Read more

  • Rear wall made of sheet steel
  • Cable entry on top, bottom, and side via flange opening
  • Grid unit: 9 GU, Overall height: 5
  • Panel width: 2, Space units: 216
  • Pre-assembled for metering modules and mounting plates
  • Applicable standards: EN 61439-1, EN 61439-2, EN 61439-3


Product

Manufacturer Material ID -
2CPX010026R9999
Net Weight -
29.37kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
170 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
225 Millimetre
Extension possible -
Height -
1400 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
222 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
104
Number of modules -
216
Number of openings for flange plates -
2
Number of rows -
9
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
170 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
550 Millimetre
Width in number of modular spacings -
24
With lock -
ABB
