2CPX010032R9999

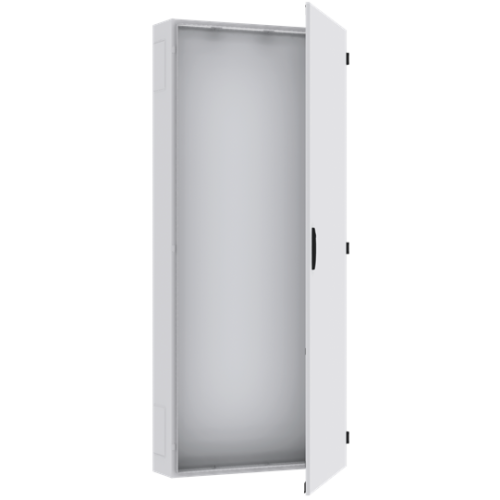

TG312G Floor-standing cabinet, Rows: 12, 1850 mm x 800 mm x 225 mm, Grounded (Class I), IP55

Manufacturer's No: 2CPX010032R9999     Manufacturer: ABB
TG312G Floor-standing cabinet, Rows: 12, 1850 mm x 800 mm x 225 mm, Grounded (Class I), IP55

Availability On Request

£904.21
  • Floor-standing cabinet from TwinLine series
  • Dimensions: 1850 mm x 800 mm x 225 mm
  • Grounded (Class I) with IP55 protection
  • Empty cabinet with expansion options
  • Single-leaf door with standard locking mechanism
  • Impact strength IK08, powder-coated in RAL 7035
  • Enclosure made of sheet steel, rear wall included
  • Cable entry on top, bottom, and side via flange openings
  • Complies with standards: EN 61439-1, EN 61439-2, EN 61439-3
  • Designed for internal use, pre-assembled for easy installation

Read more

  • Grid unit: 12 GU, overall height: 8, panel width: 3
  • Space units: 432, suitable for metering modules and mounting plates


Product

Manufacturer Material ID -
2CPX010032R9999
Net Weight -
51.87kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
170 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
225 Millimetre
Extension possible -
Height -
1850 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
222 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
156
Number of modules -
432
Number of openings for flange plates -
3
Number of rows -
12
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
170 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
800 Millimetre
Width in number of modular spacings -
36
With lock -
ABB

Availability On Request

£904.21
