2CPX010086R9999

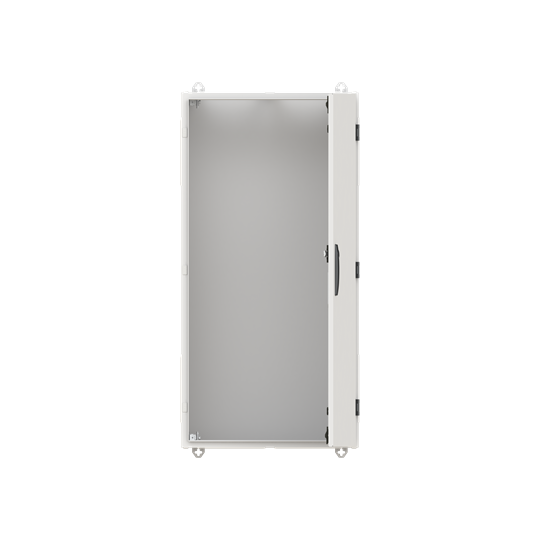

TL207G Wall-mounting cabinet, Rows: 7, 1100 mm x 550 mm x 275 mm, Grounded (Class I), IP55

Manufacturer's No: 2CPX010086R9999     Manufacturer: ABB
TL207G Wall-mounting cabinet, Rows: 7, 1100 mm x 550 mm x 275 mm, Grounded (Class I), IP55

Availability On Request

£514.62
  • Wall-mounting cabinet from TwinLine series
  • Dimensions: 1100 mm x 550 mm x 275 mm
  • Grounded (Class I) with IP55 protection
  • Empty cabinet with expansion options
  • Single-leaf door with standard double bit locking mechanism
  • Impact strength IK08, powder-coated in RAL 7035
  • Enclosure made of sheet steel with rear wall
  • Cable entry on top, bottom, and side via flange openings
  • Applicable standards: EN 61439-1, EN 61439-2, EN 61439-3
  • Pre-assembled for metering modules and mounting plates

Read more

  • Overall height: 3 grid units, panel width: 2 grid units
  • Space units: 168, door opens 180 degrees
  • Suitable for internal use, with high-quality construction


Product

Manufacturer Material ID -
2CPX010086R9999
Net Weight -
25.76kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
222.5 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP55
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
275 Millimetre
Extension possible -
Height -
1100 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
272 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
104
Number of modules -
168
Number of openings for flange plates -
2
Number of rows -
7
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
222.5 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
550 Millimetre
Width in number of modular spacings -
24
With lock -
ABB

Availability On Request

£514.62
