2CPX010136R9999

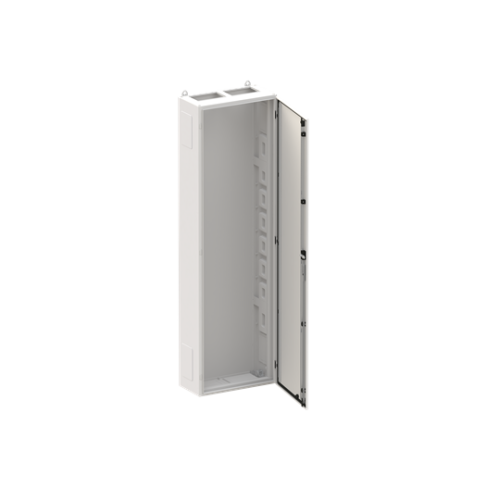

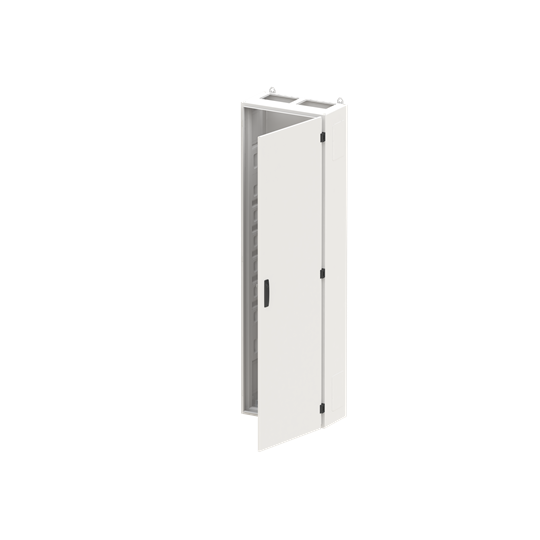

TL212S Floor-standing cabinet, Rows: 12, 1850 mm x 550 mm x 275 mm, Isolated (Class II), IP55

Manufacturer's No: 2CPX010136R9999     Manufacturer: ABB
TL212S Floor-standing cabinet, Rows: 12, 1850 mm x 550 mm x 275 mm, Isolated (Class II), IP55

Availability On Request

£1,164.80
  • Floor-standing cabinet from TwinLine series
  • Dimensions: 1850 mm x 550 mm x 275 mm
  • Isolated (Class II) with IP55 protection
  • Empty cabinet with expansion options
  • Double insulated with standard locking mechanism
  • Impact strength IK08, powder-coated in RAL 7035
  • Complies with standards: EN 61439-1, EN 61439-2, EN 61439-3
  • Single-leaf door with 180-degree opening angle
  • Rear wall made of sheet steel
  • Cable entry on top, bottom, and side via flange openings

Read more

  • Grid unit: 12 GU, overall height: 8, panel width: 2
  • Space units: 288, pre-assembled for various installations


Product

Manufacturer Material ID -
2CPX010136R9999
Net Weight -
47.75kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP55
Depth -
275 Millimetre
Extension possible -
Height -
1850 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
272 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
104
Number of modules -
288
Number of openings for flange plates -
2
Number of rows -
12
Plate thickness cabinet -
1 Millimetre
Plate thickness door/cover -
1.5 Millimetre
Protection class -
II
RAL number -
7035
Recess depth -
222.5 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
550 Millimetre
Width in number of modular spacings -
24
With lock -
ABB

Availability On Request

£1,164.80
