2CPX041839R9999

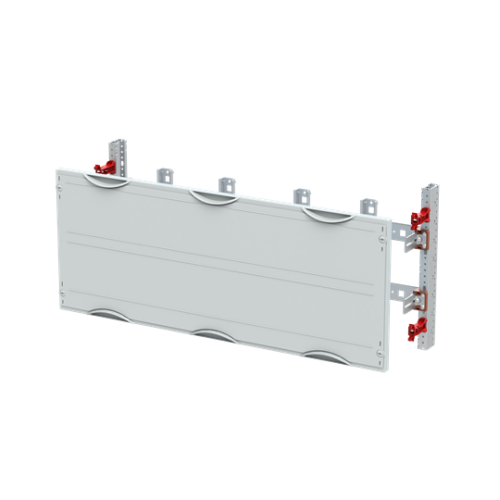

MBK312 Vertical terminals 300 mm x 750 mm x 200 mm , 3 , 000

Manufacturer's No: 2CPX041839R9999     Manufacturer: ABB
MBK312 Vertical terminals 300 mm x 750 mm x 200 mm , 3 , 000

Availability On Request

£163.36
  • Vertical terminal dimensions: 300 mm x 750 mm x 200 mm
  • Interior fitting module for Vertical terminals
  • Modular distribution panel (unassembled)
  • Grid unit: 2 GU = 300 mm
  • Panel width: 750 mm
  • 72 Space units
  • DIN rail: 35 x 15 mm with perforation for wire holders
  • Stepless adjustable via mounting bracket
  • Usable depth: 66 mm to 113 mm
  • Usable height: 244 mm

Read more

  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable with cabinet depth of 200 mm or more


Product

Manufacturer Material ID -
2CPX041839R9999
Net Weight -
13.50kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of poles -
-
Number of clamp positions per pole -
-
Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
Conductor cross section solid (solid, stranded) -
- Square millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
850 Ampere
Width -
750 Millimetre
ABB

Availability On Request

£163.36
