2CSF204199R1400

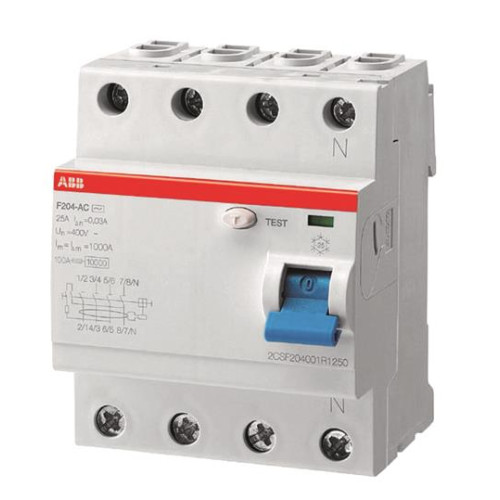

F204 A-40/0,03 110V Residual Current Circuit Breaker

Manufacturer's No: F204A-40/0.03 110V     Manufacturer: ABB
F204 A-40/0,03 110V Residual Current Circuit Breaker

Availability On Request

£214.36
The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. This particular serias has the minimum operating voltage of test buttom 0f 110V and it is suitable for application at 230V.


Product

Manufacturer Material ID -
F204A-40/0.03 110V
Net Weight -
0.35kg

Additional Product Information

Country of Origin -
IT
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Surge current capacity -
0.25 kiloampere
Degree of protection (IP) -
IP2X
Short-circuit breaking capacity (Icw) -
1 kiloampere
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
Other
Leakage current type -
A
Mounting method -
DIN rail
Number of poles -
4
Pollution degree -
2
Rated current -
40 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated voltage -
400 Volt
Recess depth -
69 Millimetre
Width in number of modular spacings -
4
With interlocking device -
ABB

Availability On Request

£214.36
