2CSR272199R1164

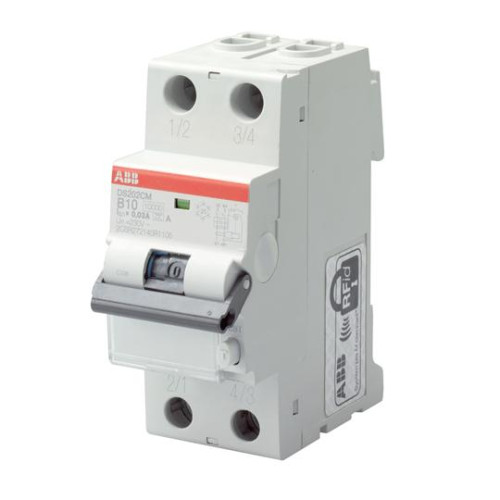

DS202C M C16 A30 110V - RCBO

Manufacturer's No: DS202CMC16A30 110V     Manufacturer: ABB
DS202C M C16 A30 110V - RCBO

Availability On Request

POA
  • DS202C M C16 A30 110V RCBO
  • 2P in two-modules device
  • Protects single-phase circuits from overload and short-circuit currents
  • Protects against earth fault currents
  • Provides protection against indirect and direct contacts (sensitivity = 30 mA)
  • Minimum operating voltage of test button: 110V
  • Suitable for 230V applications


Product

Manufacturer Material ID -
DS202CMC16A30 110V
Net Weight -
0.24kg

Additional Product Information

Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Built-in depth -
69 Millimetre
Release characteristic -
C
Surge current capacity -
0.25 kiloampere
Over voltage category -
3
Frequency -
50/60 Hz
Degree of protection (IP) -
IP2X
Voltage type -
AC
Recess depth -
69 Millimetre
Rated current -
16 Ampere
Rated voltage -
240 Volt
Tripping characteristic (type/curve) -
C
Rated fault current -
0.03 Ampere
Leakage current type -
A
Current limiting class -
3
Pollution degree -
2
Width in number of modular spacings -
2
Degree of protection (IP rating) -
IP2X
Number of protected poles -
2
Concurrently switching N-neutral -
Rated short-circuit breaking capacity IEC 60947-2 -
10 kiloampere
Connectable conductor cross section solid-core -
25 Square millimetre
Connectable conductor cross section multi-wired -
1 Square millimetre
With interlocking device -
Ambient temperature during operating -
-25 Degrees celsius
Number of poles (total) -
2
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Disconnection characteristic -
Undelayed
ABB

Availability On Request

POA
