2CDB352501R1165

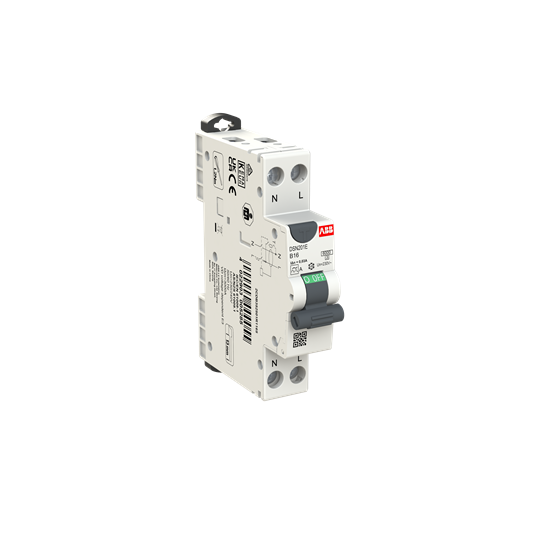

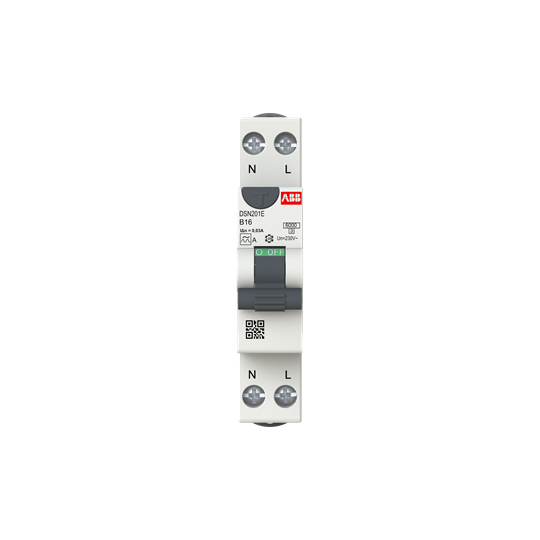

DSN201E B16 A30 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DSN201EB16A30     Manufacturer: ABB
DSN201E B16 A30 Residual Current Circuit Breaker with Overcurrent Protection

Availability On Request

POA
  • Model: DSN201E B16 A30
  • Type: Residual Current Circuit Breaker with Overcurrent Protection
  • Configuration: 1P+N electronic RCBO in one-module width
  • Protects single-phase circuits against overload and short-circuit currents
  • Provides protection against sinusoidal alternating earth fault currents
  • Offers protection against indirect and direct contacts with sensitivity of 30 mA
  • Features switched neutral circuit


Product

Manufacturer Material ID -
DSN201EB16A30
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
CN
UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
1 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
2.5 Watt
Rated current -
16 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
6 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
6 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
6 kiloampere
Rated voltage -
240 Volt
Recess depth -
70 Millimetre
Surge current capacity -
2.5 kiloampere
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
1
