2CDS271334R0204

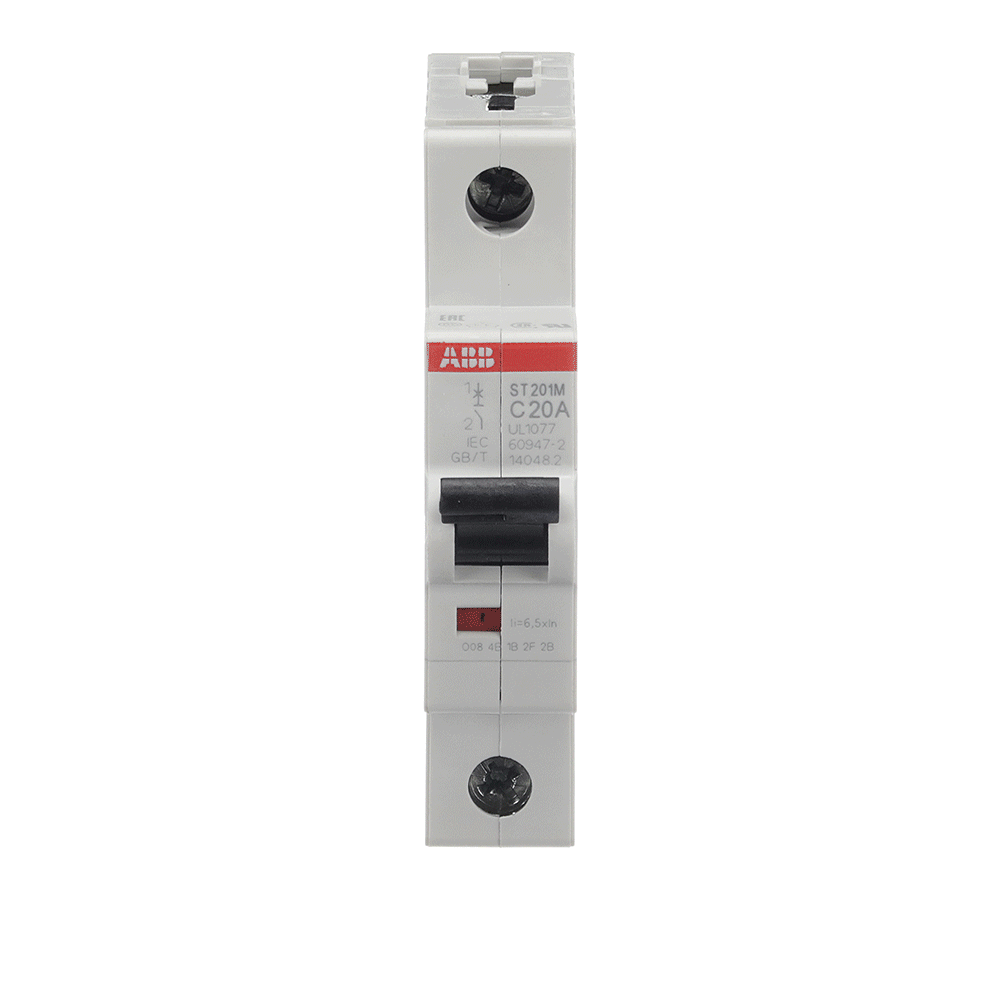

ST201M-C20 Miniature Circuit Breaker - 1P - C - 20 A

Manufacturer's No: ST201M-C20     Manufacturer: ABB
ST201M-C20 Miniature Circuit Breaker - 1P - C - 20 A

Availability On Request

£29.24
  • Model: ST201M-C20 Miniature Circuit Breaker
  • Configuration: 1P
  • Trip Curve: C
  • Rated Current: 20 A
  • Breaking Capacity: 10 kA


Product

Manufacturer Material ID -
ST201M-C20
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
BG
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
35 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
1
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
3
Rated current -
20 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
15 kiloampere
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
Other
Width in number of modular spacings -
1
ABB

Availability On Request

£29.24
