2CDS381103R0157

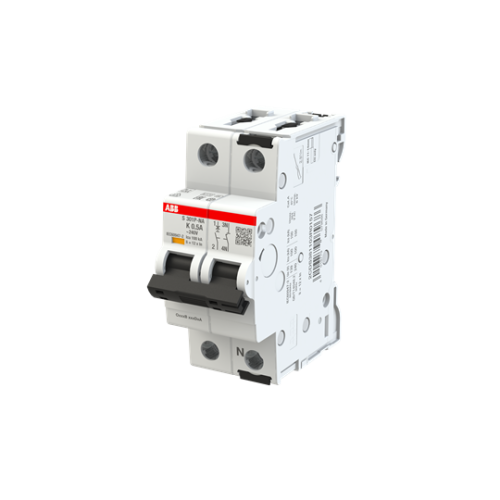

S301P-K0.5NA Miniature Circuit Breaker - 1+NP - K - 0.5 A

Manufacturer's No: S301P-K0.5NA     Manufacturer: ABB
S301P-K0.5NA Miniature Circuit Breaker - 1+NP - K - 0.5 A

Availability On Request

£109.70
  • Miniature Circuit Breaker (MCB) from the S300P series
  • Provides protection in industrial installations against overload and short circuits
  • Manufactured according to international IEC and UL standards


Product

Manufacturer Material ID -
S301P-K0.5NA
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Additional equipment possible -
Ambient temperature during operating -
-40 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
4
Pollution degree -
3
Power loss -
2.6 Watt
Rated current -
0.5 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
100 kiloampere
Rated voltage -
240 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
K
Voltage type -
Other
Width in number of modular spacings -
2
