2CKA006200A0858

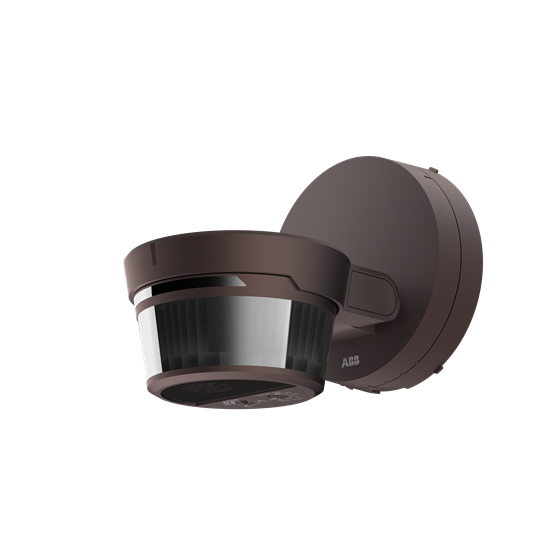

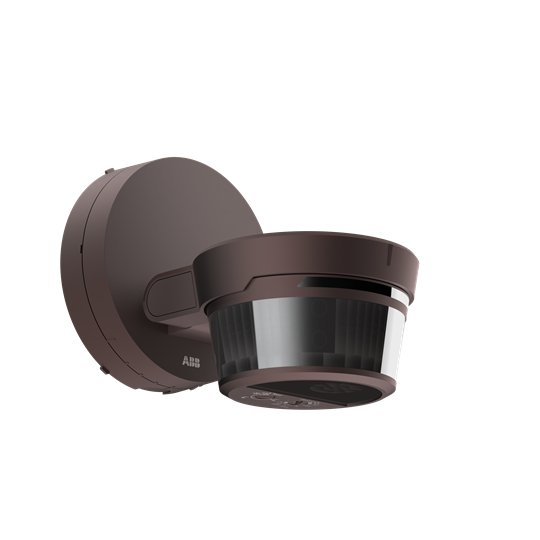

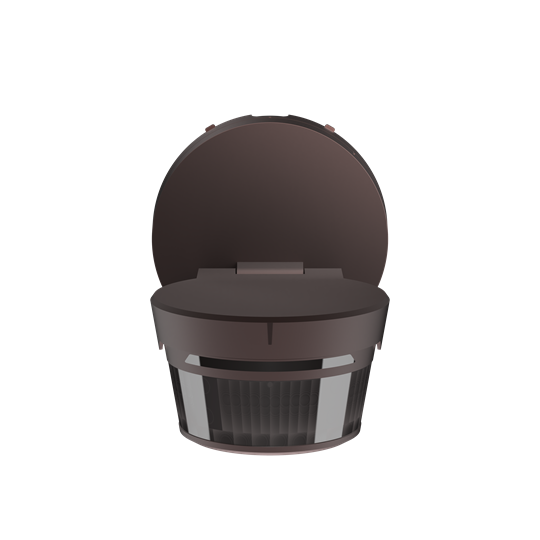

BUSCH WATCHDOG MOTION DETECTOR

Manufacturer's No:
BUSCH WATCHDOG MOTION DETECTOR

Availability On Request

£247.11


Product

Manufacturer Material ID -
Net Weight -
0.30kg

Additional Product Information

UNSPSC -
39122216

Technical Specification

Bridging switch -
Colour -
Brown
Creep-under protection -
Degree of protection (IP rating) -
IP55
Depth -
157.75 Millimetre
Detection angle horizontal -
8 Degrees
Forced switch off -
Forced switch on -
Frequency -
50 Hertz
Height -
124.4 Millimetre
Material -
Plastic
Material qualifier -
Thermoplastic
Max. duty cycle -
30 Minute
Max. reach frontally -
16 Metre
Max. reach sideways -
16 Metre
Max. switching power -
2300 Watt
Min. switch-on time -
10 Second
Model -
Movement sensor
Mounting method -
Surface mounted
Networkable -
Nominal voltage -
230 Volt
Number of switching zones -
4
Optimum mounting height -
2.5 Metre
Pivoting range sensor, horizontal -
-30 Degrees
Pivoting range sensor, vertical -
-40 Degrees
RAL-number (similar) -
8017
Remote operation -
Response value luminosity adjustable -
Response value sensitivity adjustable -
Sensor type -
Passive infrared
Staircase monitoring -
Suitable for ceiling mounting -
Suitable for wall mounting -
Suitable for wireless transmission -
Surface protection -
Untreated
Teach-function for response value luminosity -
Temperature -
-25 Degrees celsius
Voltage type -
AC
Width -
110 Millimetre


Availability On Request

£247.11
