2CPX052241R9999

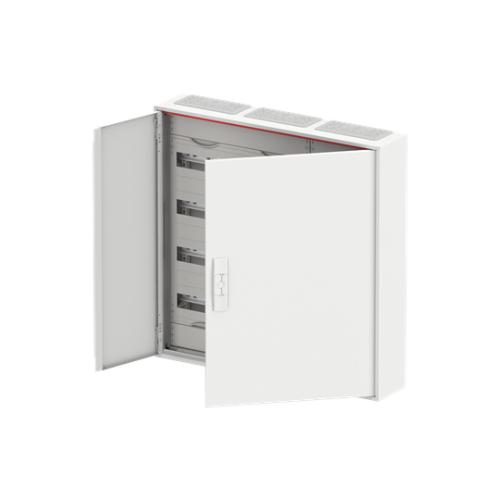

CA35R ComfortLine Compact distribution board, Surface mounting, 144 SU, Isolated (Class II), IP44, Rows: 4, 800 mm x 800 mm x 160

Manufacturer's No: CA35R     Manufacturer: ABB
CA35R ComfortLine Compact distribution board, Surface mounting, 144 SU, Isolated (Class II), IP44, Rows: 4, 800 mm x 800 mm x 160 mm

Availability On Request

£608.61
  • CA35R ComfortLine Compact distribution board
  • Surface mounting
  • 144 Space Units (SU)
  • Isolated (Class II)
  • IP44 protection rating
  • Dimensions: 800 mm x 800 mm x 160 mm
  • Rows: 4
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 125 A
  • Impact strength: IK07

Read more

  • Powder-coated in RAL 9016
  • Enclosure made of sheet steel with double door
  • Door with 120-degree opening angle, hinge on right and left
  • Cable entry on top via membrane flange, on bottom via pre-punched flange opening
  • Applicable standards: EN 61439-1, EN 61439-3
  • Achieves protection class 1 with earthing set
  • Space for distribution module and removable device support
  • Grid unit: 5 GU, panel width: 3
  • Row distance: 150 mm
  • Plastic covers with 90-degree press and turn closure in RAL 7035
  • N/PE Quick-terminal and integrated cable fastening rail


Product

Manufacturer Material ID -
CA35R
Net Weight -
23.31kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP44
Depth -
160 Millimetre
Earthing terminal block -
Extension possible -
Height -
800 Millimetre
Housing material -
Steel
Internal depth -
152 Millimetre
Mounting method -
Surface mounted
Neutral terminal block -
Number of rows -
4
RAL number -
9016
Recess depth -
0 Millimetre
Recess height -
0 Millimetre
Recess width -
0 Millimetre
Type of closure -
Other
Type of covering -
Door
Type of door -
Double
Width -
800 Millimetre
Width in number of modular spacings -
36
With DIN-rail -
With lock -
ABB
