2CPX052242R9999

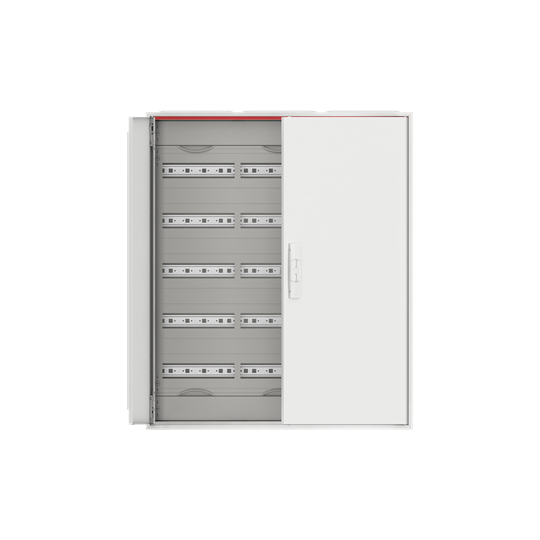

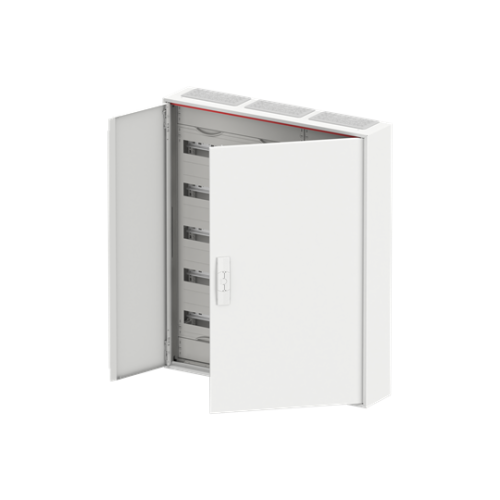

CA36R ComfortLine Compact distribution board, Surface mounting, 180 SU, Isolated (Class II), IP44, Rows: 5, 950 mm x 800 mm x 160

Manufacturer's No: CA36R     Manufacturer: ABB
CA36R ComfortLine Compact distribution board, Surface mounting, 180 SU, Isolated (Class II), IP44, Rows: 5, 950 mm x 800 mm x 160 mm

Availability On Request

£692.39
  • CA36R ComfortLine Compact distribution board
  • Surface mounting
  • 180 Space Units (SU)
  • Isolated (Class II), can achieve protection class 1 with earthing set
  • IP44 protection rating
  • Rows: 5
  • Dimensions: 950 mm x 800 mm x 160 mm
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 125 A
  • Powder-coated sheet steel enclosure in RAL 9016

Read more

  • Double door with 120-degree opening angle
  • Door hinge on right and left
  • Cable entry on top via membrane flange, on bottom via pre-punched flange opening
  • Applicable standards: EN 61439-1, EN 61439-3
  • Impact strength: IK07
  • Grid unit: 6 GU
  • Panel width: 3
  • Row distance: 150 mm
  • Plastic covers with 90-degree press and turn closure in RAL 7035
  • N/PE Quick-terminal
  • Cable fastening rail integrated
  • Assembled with distribution module, removable device support


Product

Manufacturer Material ID -
CA36R
Net Weight -
26.86kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP44
Depth -
160 Millimetre
Earthing terminal block -
Extension possible -
Height -
950 Millimetre
Housing material -
Steel
Internal depth -
152 Millimetre
Mounting method -
Surface mounted
Neutral terminal block -
Number of rows -
5
RAL number -
9016
Recess depth -
0 Millimetre
Recess height -
0 Millimetre
Recess width -
0 Millimetre
Type of closure -
Other
Type of covering -
Door
Type of door -
Double
Width -
800 Millimetre
Width in number of modular spacings -
36
With DIN-rail -
With lock -
ABB

Availability On Request

£692.39
