2CPX052244R9999

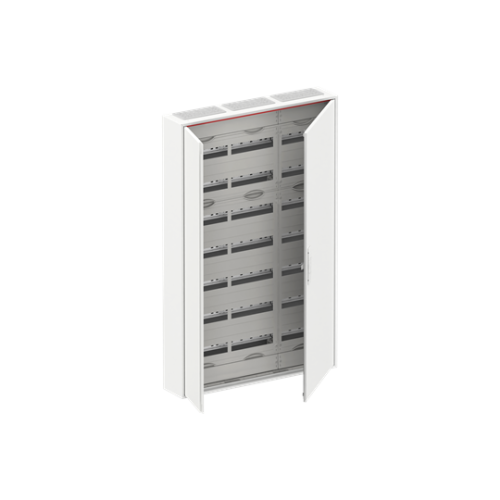

CA38R ComfortLine Compact distribution board, Surface mounting, 252 SU, Isolated (Class II), IP44, Rows: 7, 1250 mm x 800 mm x 160

Manufacturer's No: CA38R     Manufacturer: ABB
CA38R ComfortLine Compact distribution board, Surface mounting, 252 SU, Isolated (Class II), IP44, Rows: 7, 1250 mm x 800 mm x 160 mm

Availability In Stock

£919.11
  • CA38R ComfortLine Compact distribution board
  • Surface mounting
  • 252 Space Units (SU)
  • Isolated (Class II), can achieve protection class 1 with earthing set
  • IP44 protection rating
  • Rows: 7
  • Dimensions: 1250 mm x 800 mm x 160 mm
  • Rated operational voltage: 400V AC 50/60 Hz
  • Rated current: 125 A
  • Enclosure made of powder-coated sheet steel

Read more

  • Double insulated (Class II) with double door
  • Impact strength: IK07
  • Applicable standards: EN 61439-1, EN 61439-3
  • Grid unit: 8 GU
  • Panel width: 3
  • Row distance: 150 mm
  • Plastic covers with 90-degree press and turn closure (RAL 7035)
  • N/PE Quick-terminal
  • Cable fastening rail integrated
  • Assembled with distribution module, device support removable


Product

Manufacturer Material ID -
CA38R
Net Weight -
34.17kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Colour -
White
Cover model -
Closed
Degree of protection (IP rating) -
IP44
Depth -
160 Millimetre
Earthing terminal block -
Extension possible -
Height -
1250 Millimetre
Housing material -
Steel
Internal depth -
152 Millimetre
Mounting method -
Surface mounted
Neutral terminal block -
Number of rows -
7
RAL number -
9016
Recess depth -
0 Millimetre
Recess height -
0 Millimetre
Recess width -
0 Millimetre
Type of closure -
Other
Type of covering -
Door
Type of door -
Double
Width -
800 Millimetre
Width in number of modular spacings -
36
With DIN-rail -
With lock -
ABB

Availability In Stock

£919.11
