2CSR255170R1324

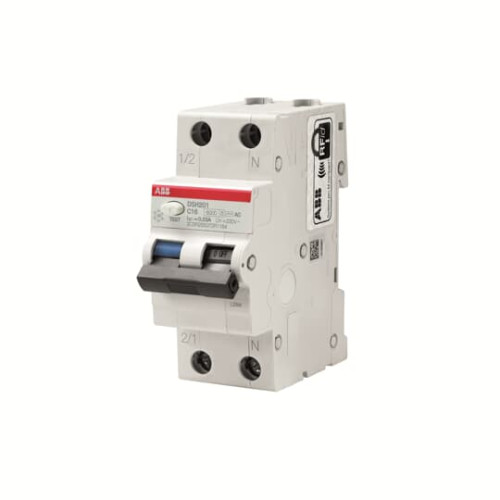

DSH201 C32 A30 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DSH201 C32 A30     Manufacturer: ABB
DSH201 C32 A30 Residual Current Circuit Breaker with Overcurrent Protection

Availability Back Order

£82.27
  • Model: DSH201 C32 A30
  • Type: Residual Current Circuit Breaker with Overcurrent Protection
  • Features protection against indirect contacts
  • Provides additional protection against direct contacts


Product

Manufacturer Material ID -
DSH201 C32 A30
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
IT
UNSPSC -
39121627

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
25 Square millimetre
Connectable conductor cross section solid-core -
25 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
9.9 Watt
Rated current -
32 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
6 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
6 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
7.5 kiloampere
Rated voltage -
230 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
2
ABB

Availability Back Order

£82.27
