2CSR772199R1324

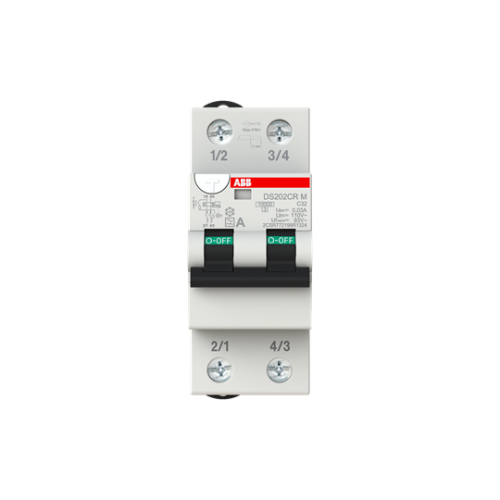

DS202CR M C32 A30 110V Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS202CRMC32A30     Manufacturer: ABB
DS202CR M C32 A30 110V Residual Current Circuit Breaker with Overcurrent Protection

Availability On Request

£252.29
  • Model: DS202CR M C32 A30 110V
  • Type: Residual Current Circuit Breaker with Overcurrent Protection
  • Configuration: 2P in two-modules
  • Voltage: 110V
  • Protects single-phase circuits against overload and short-circuit currents
  • Provides protection against sinusoidal alternating and direct pulsating earth fault currents
  • Offers protection against indirect and direct contacts


Product

Manufacturer Material ID -
DS202CRMC32A30
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85363030
Country of Origin -
PL
UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
1 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
7.6 Watt
Rated current -
32 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
10 kiloampere
Rated voltage -
110 Volt
Recess depth -
72 Millimetre
Surge current capacity -
0.25 kiloampere
Tripping characteristic (type/curve) -
C
Voltage type -
AC
Width in number of modular spacings -
2
