2CSR772440R1065

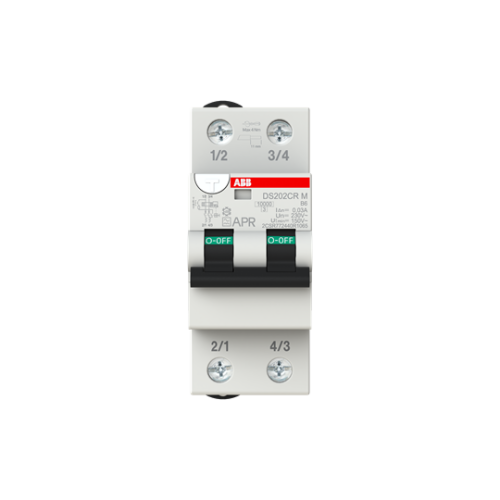

DS202CR M B6 APR30 Residual Current Circuit Breaker with Overcurrent Protection

Manufacturer's No: DS202CMB6APR30     Manufacturer: ABB
DS202CR M B6 APR30 Residual Current Circuit Breaker with Overcurrent Protection

Availability On Request

£287.66
  • DS202CR M B6 APR30 RCBO
  • 2P in two-modules device
  • Protects single-phase circuits from overload and short-circuit currents
  • Protects against sinusoidal alternating and direct pulsating earth fault currents
  • Provides protection against indirect and direct contacts


Product

Manufacturer Material ID -
DS202CMB6APR30
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85363010
Country of Origin -
PL
UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Anti-nuisance tripping version -
Concurrently switching N-neutral -
Connectable conductor cross section multi-wired -
1 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
3.04 Watt
Rated current -
6 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity according to EN 61009 -
10 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
10 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
10 kiloampere
Rated voltage -
230 Volt
Recess depth -
72 Millimetre
Surge current capacity -
3 kiloampere
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
2
ABB

Availability On Request

£287.66
