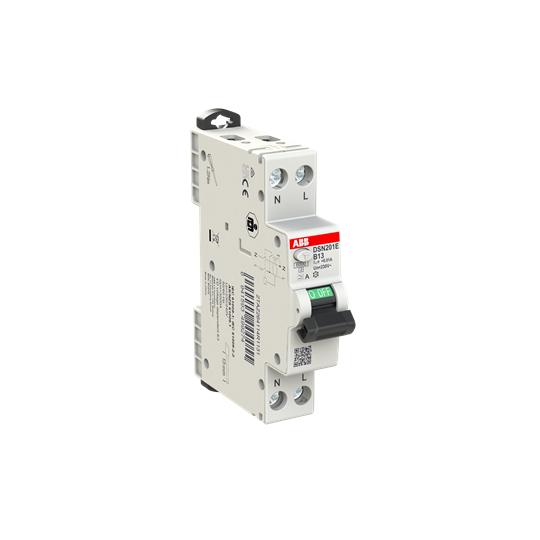

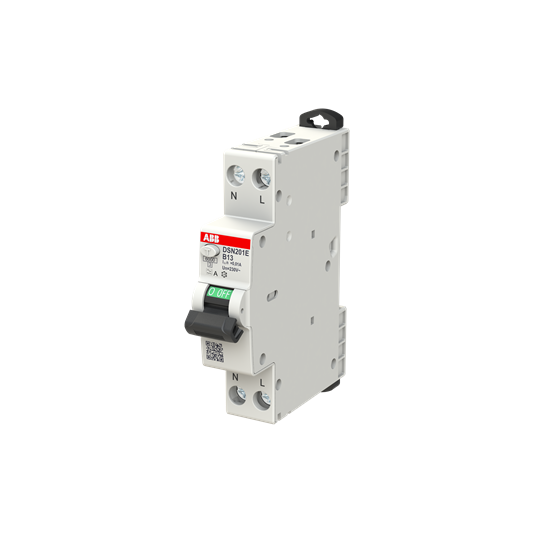

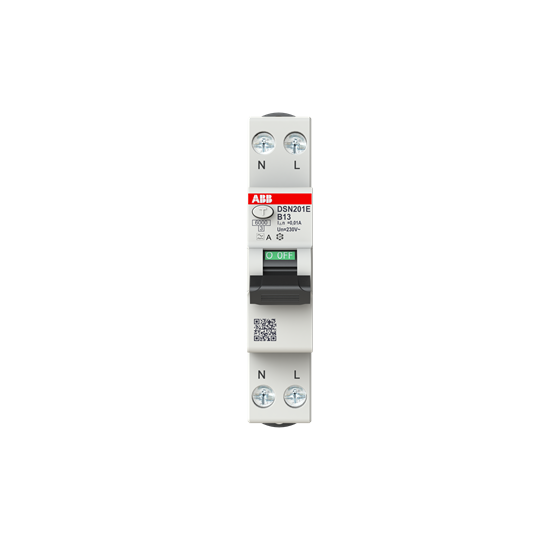

2TAZ264114R1131

E-RCBO 13A 1P&N "B" 10MA (A) 6KA

Manufacturer's No:
E-RCBO 13A 1P&N "B" 10MA (A) 6KA

Availability On Request

£143.30


Product

Manufacturer Material ID -
Net Weight -
0.20kg

Additional Product Information

UNSPSC -
39121601

Technical Specification

Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
1 Square millimetre
Connectable conductor cross section solid-core -
1 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Disconnection characteristic -
Undelayed
Frequency -
50/60 Hz
Leakage current type -
A
Number of poles (total) -
2
Number of protected poles -
1
Over voltage category -
3
Pollution degree -
2
Power loss -
2.4 Watt
Rated current -
13 Ampere
Rated fault current -
0.01 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
500 Volt
Rated short-circuit breaking capacity according to EN 61009 -
6 kiloampere
Rated short-circuit breaking capacity Icn according to EN 61009-1 -
6 kiloampere
Rated short-circuit breaking capacity IEC 60947-2 -
6 kiloampere
Rated voltage -
240 Volt
Recess depth -
70 Millimetre
Tripping characteristic (type/curve) -
B
Voltage type -
AC
Width in number of modular spacings -
1


Availability On Request

£143.30
