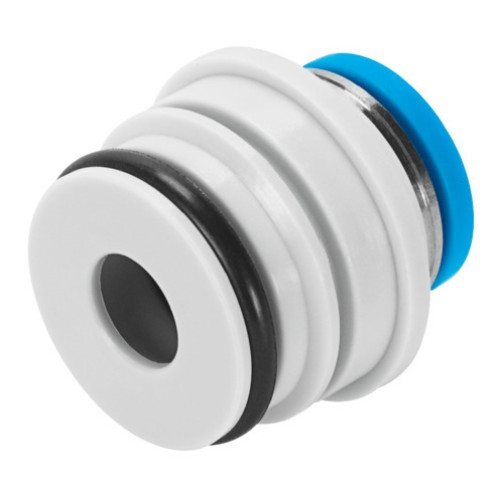

QSPKG20-8 Cartridge

Manufacturer's No: QSPKG20-8     Manufacturer: Festo
QSPKG20-8 Cartridge

Availability Available to order

£2.65
  • Cartridge model: QSPKG20-8
  • Polymer version in grey color
  • Straight design with mounting pin
  • Cartridge size: 20 mm for tubing with outer diameter of 8 mm
  • Package quantity: 10 pieces
  • Nominal size: 5.4 mm
  • Seal type on screwed plug: O-ring
  • Operating pressure range: -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi)
  • Operating medium: Compressed air meeting ISO 8573-1:2010 standards
  • Lubricated operation possible

Read more

  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature range: -5°C to 60°C
  • Product weight: 6 g
  • Mounting type: Mounting pin
  • Pneumatic connection port 1: Cartridge 20 mm
  • Pneumatic connection port 2: For tubing with outer diameter of 8 mm
  • Release ring color: Blue
  • RoHS-compliant materials
  • Housing material: PA-reinforced
  • Release ring material: POM
  • Tubing seal material: NBR
  • Tubing clamp component material: High-alloy stainless steel


Product

Manufacturer Material ID -
QSPKG20-8
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
9031 8020
Country of Origin -
JP
UNSPSC -
41111926
