OBE25M-R201-S2EP-IO

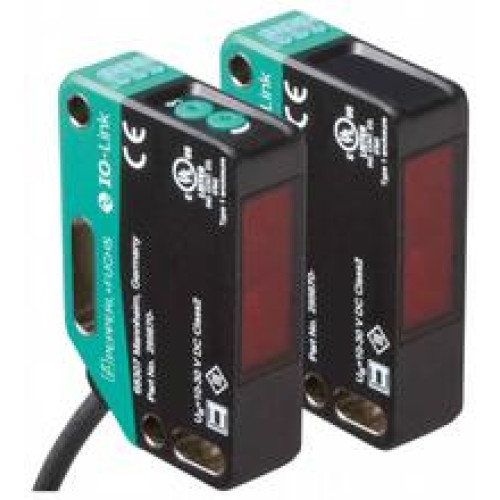

Thru-beam sensor - Effective detection range: 0 ... 25 m, Light source: LED, Light type: modulated visible red light, Signal outpu

Manufacturer's No: 301107     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 25 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability On Request

£162.84
  • Detection Range: 0 to 25 m
  • Light Source: LED with modulated visible red light
  • Signal Output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface Type: IO-Link (via C/Q = BK)
  • Switching Type: Adjustable with default settings as NPN normally open/dark-on for C/Q - BK and PNP normally closed/light-on for IO-Link /Q - WH
  • Connection: 2 m fixed cable
  • Operating Voltage: 10 to 30 V DC
  • Ambient Temperature: -40 to 60 °C (-40 to 140 °F) for fixed cable, -20 to 60 °C (-4 to 140 °F) for movable cable (not suitable for conveyor chains)


Product

Manufacturer Material ID -
301107
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£162.84
