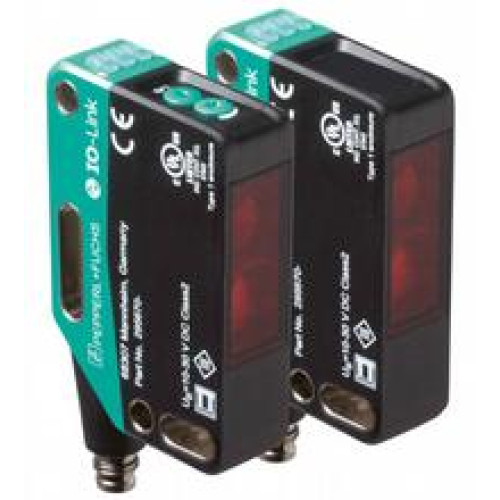

OBE40M-R201-SEP-IO-V3-L

Thru-beam sensor - Effective detection range: 0 ... 40 m, Light source: laser diode, Light type: modulated visible red light, Sign

Manufacturer's No: 301128     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 40 m, Light source: laser diode, Light type: modulated visible red light, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, re..

Availability On Request

£205.51
  • Detection range: 0 to 40 m
  • Light source: Laser diode
  • Light type: Modulated visible red light
  • Signal output: 1 push-pull (4 in 1) output, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link via C/Q = pin 4
  • Switching type: Adjustable with default setting as NPN normally open/dark-on, PNP normally closed/light-on
  • Connection: Connector plug, M8 x 1, 3 pin, rotatable by 90°
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F)


Product

Manufacturer Material ID -
301128
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£205.51
