RLG28-55-7462

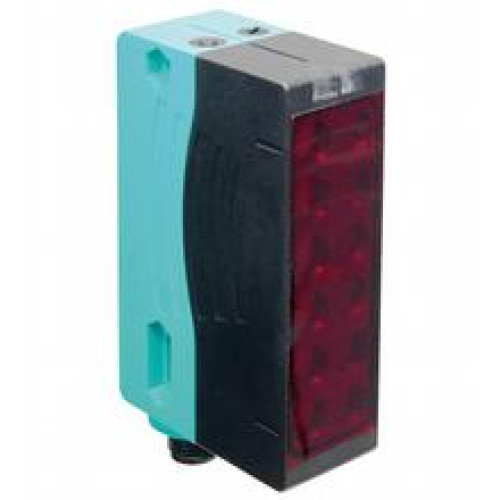

Retroreflective area sensor - Effective detection range: 0 ... 4 m, Number of beams: 6, Light source: LED, Light type: modulated v

Manufacturer's No: 302418     Manufacturer: Pepperl+Fuchs
Retroreflective area sensor - Effective detection range: 0 ... 4 m, Number of beams: 6, Light source: LED, Light type: modulated visible red light , 625 nm, Signal output: 1 push-pull (4 in 1) outp..

Availability On Request

£313.22
  • Detection Range: 0 to 4 meters
  • Number of Beams: 6
  • Light Source: LED
  • Light Type: Modulated visible red light (625 nm)
  • Signal Output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected
  • Switching Type: Light/dark on, switchable
  • Connection: 4-pin, M12 x 1 connector
  • Operating Voltage: 12 to 30 V DC
  • Ambient Temperature: -10 to 40 °C (14 to 104 °F)


Product

Manufacturer Material ID -
302418
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
Pepperl+Fuchs

Availability On Request

£313.22
