3036557

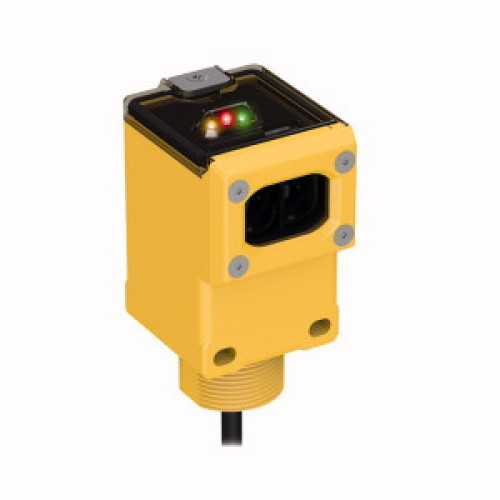

Q45 Series: Retro, Range: 0.08 - 9 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Manufacturer's No: Q45BB6LV     Manufacturer: Turck Banner
Q45 Series: Retro, Range: 0.08 - 9 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) Cable

Availability On Request

POA
  • Type: Photoelectric Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 9000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • Switching Output: Bipolar
  • Light or Dark Operation: Adjustable via switch


Product

Manufacturer Material ID -
Q45BB6LV
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
41111926

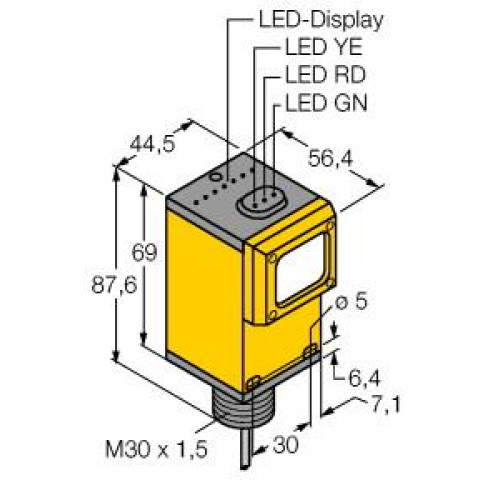

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44.5 Millimetre
Housing material -
Plastic
Length of sensor -
87.6 Millimetre
Material of optical surface -
Other
Max. switching distance -
9000 Millimetre
Rated switching distance -
9000 Millimetre
Reaction time -
2 Millisecond
Reflector included -
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
54.6 Millimetre
