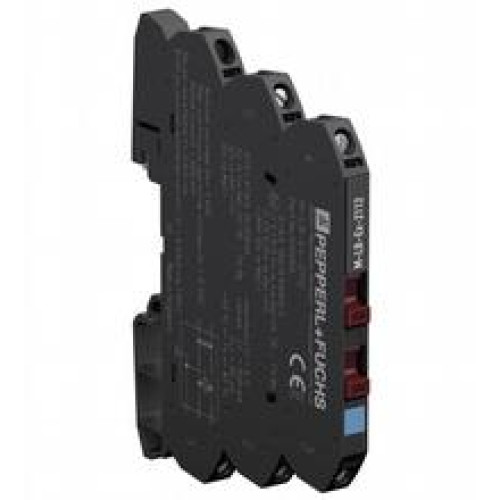

M-LB-EX-2112

Surge Protection Barrier, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc

Manufacturer's No: 313283     Manufacturer: Pepperl+Fuchs
Surge Protection Barrier, Device provides intrinsically safe circuits for equipment protection level: Ga , Gb , Gc , Da , Db , Dc , Ma , Mb, Device suitable for mounting in equipment protection lev..

Availability On Request

£65.95
  • Surge Protection Barrier with intrinsically safe circuits for equipment protection levels: Ga, Gb, Gc, Da, Db, Dc, Ma, Mb
  • Suitable for mounting in equipment protection levels: Gb, Gc
  • Provides intrinsically safe circuits for divisions: Div. 1, Div. 2
  • Suitable for mounting in divisions: Div. 1, Div. 2
  • Safety Integrity Level (SIL): SIL 3
  • Number of protected signal lines: 2
  • Topology: non-grounded
  • Nominal voltage: 1 V DC
  • Maximum continuous operating voltage: 6 V DC
  • Nominal discharge current (8/20 µs): 5 kA per line (10x)

Read more

  • Connection: screw terminals, max. core cross section 1 x 2.5 mm2
  • Dimensions: 6.2 x 93 x 72.4 mm (0.24 x 3.7 x 2.8 inch) (W x H x D)
  • Mounting: on 35 mm DIN mounting rail according to EN 60715:2001


Product

Manufacturer Material ID -
313283
Net Weight -

Additional Product Information

Commodity Code -
85363030
Country of Origin -
SG
UNSPSC -
32151705
Pepperl+Fuchs

Availability On Request

£65.95
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
