314470

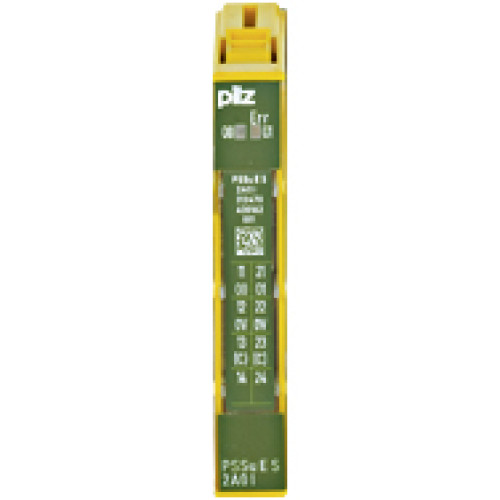

Electronic module analogue inputs and outputs, with standard function, 2 outputs: 0 … 20 mA, 4 … 20 mA, ext. temperature.

Manufacturer's No: PSSu E S 2AO I-T     Manufacturer: Pilz
Electronic module analogue inputs and outputs, with standard function, 2 outputs: 0 … 20 mA, 4 … 20 mA, ext. temperature.

Availability On Request

POA
  • PSSu electronic module
  • Standard with 2 analog outputs
  • 2 configurable voltage ranges
  • Output range: 0-20 mA
  • Single-pole, referenced to earth
  • 12-bit resolution
  • Designed for increased environmental requirements

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSSu E S 2AO I-T
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
43233603

Technical Specification

Output, current -
Output signal configurable -
Type of electric connection -
Screw-/spring clamp connection
Performance level acc. to EN ISO 13849-1 -
None
Analogue outputs configurable -
SIL according to IEC 61508 -
None
Degree of protection (IP rating) -
IP20
Depth -
60.2 Millimetre
Height -
76 Millimetre
Number of analogue outputs -
2
Resolution of the analogue outputs -
12 Bit
Width -
12.6 Millimetre
