OBE12M-R102-S2EP-IO

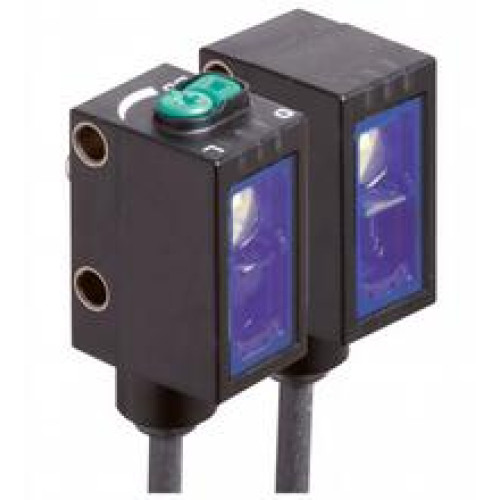

Thru-beam sensor - Effective detection range: 0 ... 12 m, Light source: LED, Light type: modulated visible red light, Signal outpu

Manufacturer's No: 322701     Manufacturer: Pepperl+Fuchs
Thru-beam sensor - Effective detection range: 0 ... 12 m, Light source: LED, Light type: modulated visible red light, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse p..

Availability On Request

£114.71
  • Detection range: 0 to 12 m
  • Light source: LED, modulated visible red light
  • Signal output: 2 push-pull (4 in 1) outputs, short-circuit, reverse polarity, and overvoltage protected
  • Interface type: IO-Link (via C/Q = pin 4)
  • Switching type: Adjustable, default setting: C/Q - BK: NPN normally open/dark-on, PNP normally closed/light-on, IO-Link/Q - WH: NPN normally closed/light-on, PNP normally open/dark-on
  • Connection: 2 m fixed cable
  • Operating voltage: 10 to 30 V DC
  • Ambient temperature: -40 to 60 °C (-40 to 140 °F), fixed cable -25 to 60 °C (-13 to 140 °F), movable cable not suitable for conveyor chains


Product

Manufacturer Material ID -
322701
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
SG
UNSPSC -
30265802
Pepperl+Fuchs

Availability On Request

£114.71
